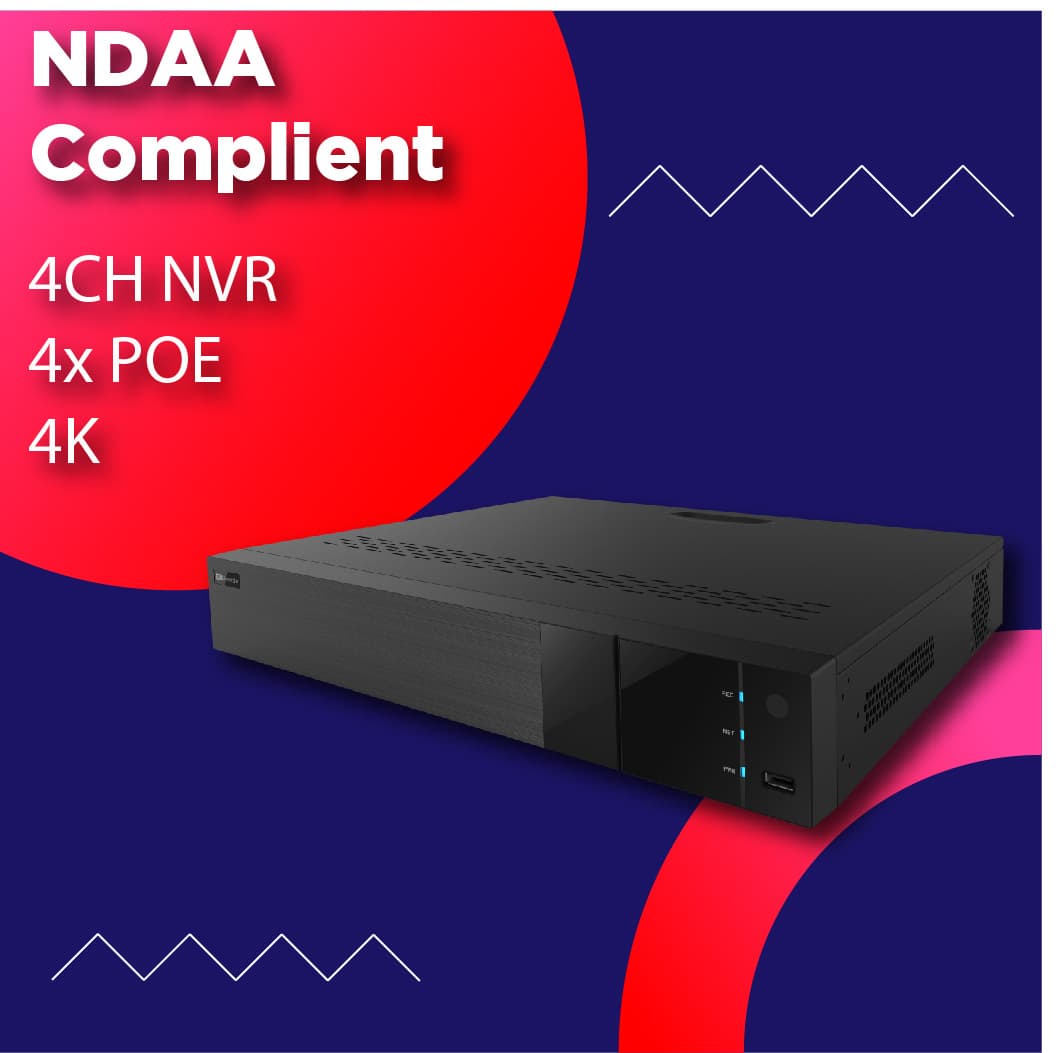

Titanium 4Ch 4PoE High Definition NVR ED9304H5NV-4P-3NDAA
Networking Video Recorder(NVR), supports 4 Channel with 4POE network ports and supports 4 CH IPC direct connection to NVR, simultaneous 4 CH playback and 4K ultra high definition display. 8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P high definition IP video input, which adopts the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. Network Access/ Transfer Bandwidth in and out: 40/40Mb, Recording FPS: 4k@30FPS,High-Definition Multimedia Interface cable (HDMI) /Video Graphics Array connector (VGA) , Audio,1 Serial, Advanced Technology Attachment (SATA).The CCTV product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
Features
- Support 4 CH 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/ 960H/DI/CIF IP video input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at the much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback: 4 CH simultaneous playback
- Search: time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network, and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS: preview, playback, backup, PTZ, and configuration
- 4 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device Multi-user online simultaneously
- Authorization management, log view, and device status view
- 4K output, true high-resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
| System Compression | H.265S /H.265+ / H.265 / H.264 |
|---|---|
| Operating System | Embedded Linux |
| IP Camera Input | 4 CH IPC input |
| Video Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
| Audio In | 4 CH IPC audio input |
| Audio Out | RCA × 1 |
| 2 Way Audio | RCA × 1 |
| Decoding Capability | Live View/ Playback: 1CH 8MP/ 4CH 1080P |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Record Stream | Dual stream recording |
| Playback Channels | 4-ch |
| Playback Search | Time/Calendar Search, Event (motion) |
| Playback Smart Search | Highlighted date and time to display the channel record |
| Playback Function | Play, Pause, FF, FB; Digital zoom |
| Alarm Mode | Manual, sensor, motion, exception, smart events |
| Alarm In | Supports IPC alarm input |
| Alarm Out | Supports IPC alarm output |
| Trigger Events | Record, snap, preset, e-mail, etc. |

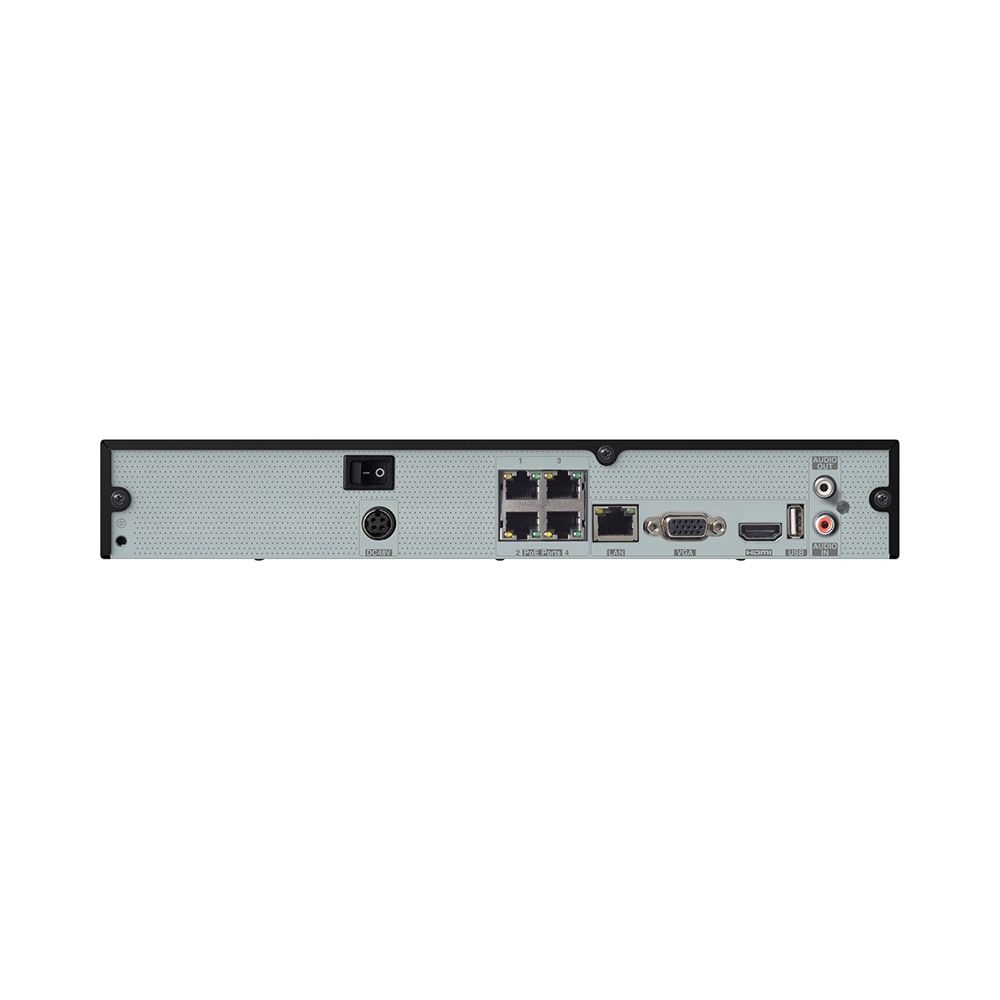

| Network Interface | RJ 45 × 1 (10/100/1000Mbps) |
| Incoming Bandwidth | 40 (Mbps) |
| Outgoing Bandwidth | 40 (Mbps) |
| Network Protocol | TCP / IP, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, ONVIF, etc. |
| Network Max. Users | Max. 10 users access |
| PoE Ports | 100M RJ45 × 4 |
| Mobile | iPhone, Android |
| USB | USB 2.0 × 2 |
| Remote Connections | Optional |
| Power Supply | DC 48V/1.25A |
| Power Consumption | ≤ 10W ( without HDD ) |
| Internal HDD | SATA3.0 × 1, max 8T |
| Operating Conditions | -10 ～ 50 ℃，10% ～ 90% humidity |
| Dimensions | 300 × 249 × 45( W × D × H ) |
