Description

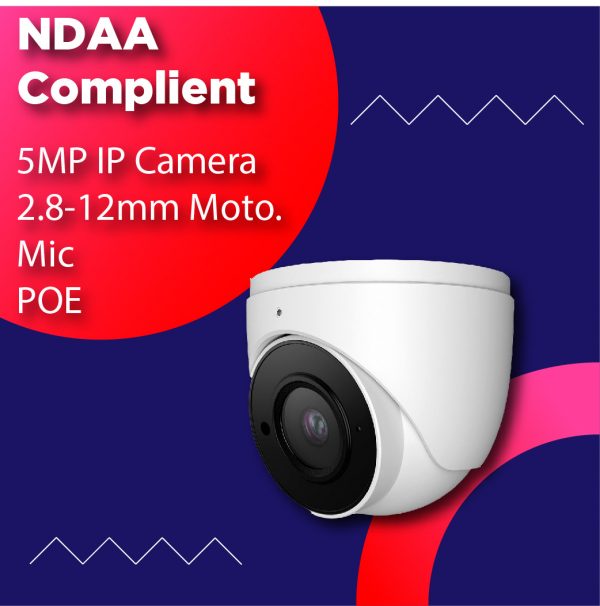

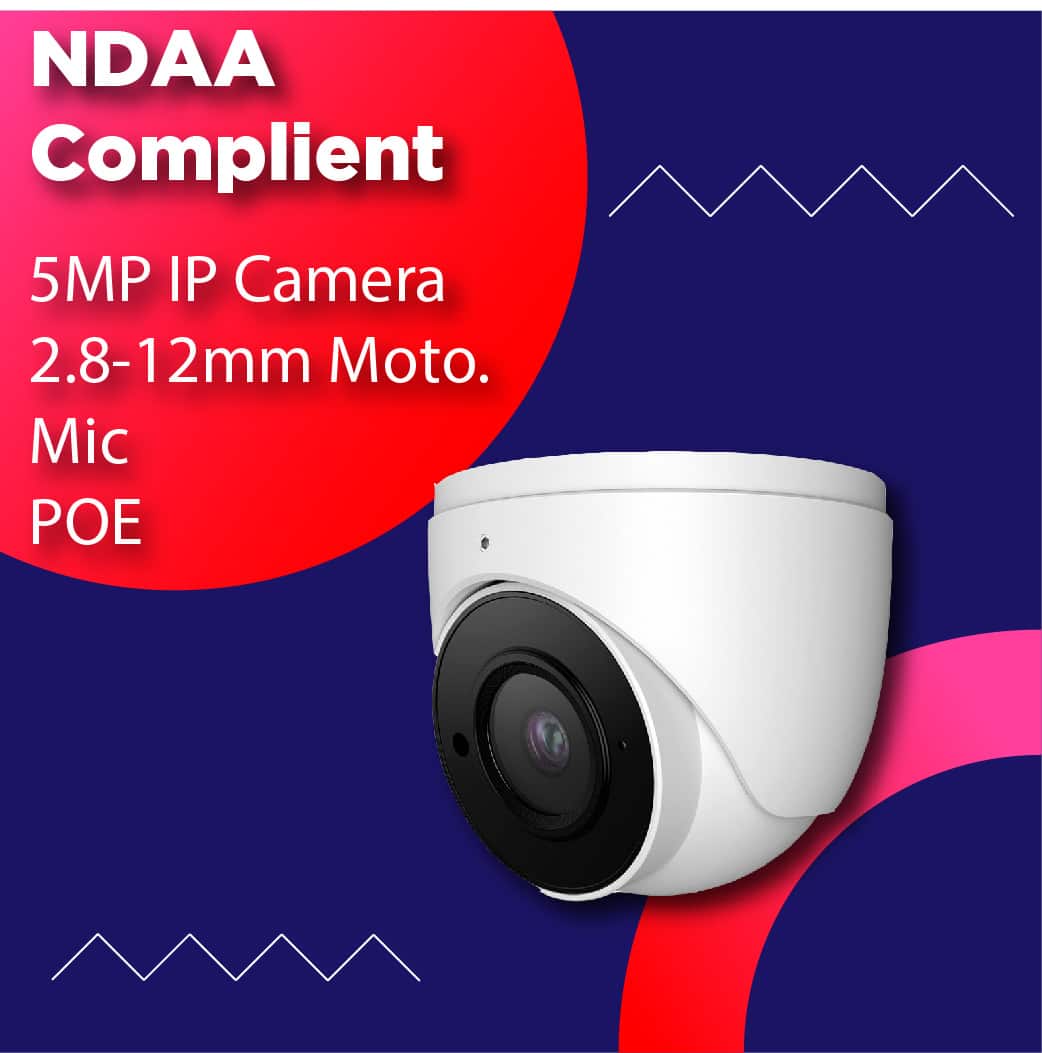

5MP Network IR Motorized 2.8-12mm Eyeball Security Camera IP-5IRD5S35/MZNDAA
Turret IP/ Networking Security Camera,1/2.7”,5MP@20FPS,2.8-12mm Motorized ,IR 50m(164ft),DWDR,Built-in Mic.
- 5MP ( 2592 × 1944 ) H.265 coding
- Max.resolution: 2592 x 1944
- Manual or motorized zoom lens optional
- ICR auto switch, true day / night, ROI coding
- 3D DNR, digital WDR, HLC, BLC, defog
- 30~50m IR night view distance
- DC12V/PoE power supply
- 1CH built-in MIC
- P2P function optional
- IP 67 ingress protection
- Support three streams
- Support remote monitoring by smartphones&tablet PCs with iOS and Android OS
- Intelligent analytics: object removal detection, abnormal video signal detection, line crossing detection, and region intrusion detection
| Image Sensor | 1 / 2.7 “CMOS |
|---|---|
| Image Size | 2592×1944 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Minimum Illumination | 0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IR |
| Focal Length | 2.8 ~ 12 mm @F1.4; |
| Angle of View | horizontal field of view:90.5° ~ 32.9° |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| IR Distance | 30 ~ 50 m |
| Wide Dynamic Range | Digital WDR |
| Video Compression | H.265 / H.264 |
| Video Resolution | 5MP ( 2592 × 1944 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Video Frame Rate | Main Stream: 60Hz : 5MP(1~20fps)/4MP(1~30fps)/1080P(1~30fps)/720P(1~30fps) 50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/1080P(1~25fps)/720P(1~25fps) Sub Stream: 60Hz : 720P /D1 /CIF (1~30fps)/CIF (1~30fps); 50Hz : 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps) Third Stream: 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Video Bitrate | 64 Kbps ~ 5 Mbps |
| Day / Night | true day / night, |
| BLC Mode | Yes |
| HLC | Yes |
| ROI | Each ROI to be configured separately |
| Digital Noise Reduction | 3D DNR |
| Defog | Yes |
| Audio Compression | G711A / U |
| Audio In | 1CH built-in MIC |
| Ethernet | RJ45 |
| Network Protocol | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Storage | Network remote storage |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
| Network Max. Users | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Mobile | iPhone, Android |
| Power Supply | DC12V/PoE |
| Power Consumption | < 10W |
| Operating Temperature | – 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing ) |
| Ingress Protection | IP67 |
| Dimensions | Φ 111.5 × 99.6mm |
| Weight | Approx. 0.64KG |
